Question 194

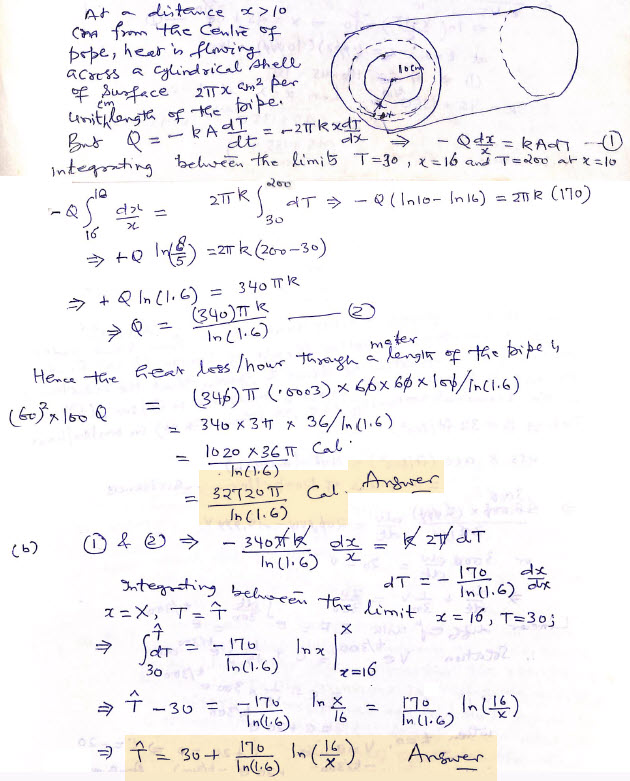

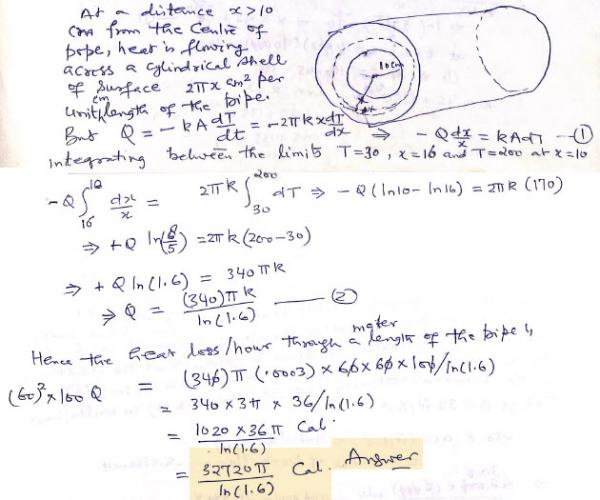

A steam pipe 30cm long in diameter is protected with a covering 6cm thick for which k = 0.0003.
i) Find the heat loss per hour through a meter length of the pipe if the surface of the pipe is 200°C and that of the outer surface of the covering is 30°C.

ii) Find the temperature at a distance x > 10cm from the centre of the pipe.
